16s
Production Cycle Time
99.8%
Product yield
Product Description

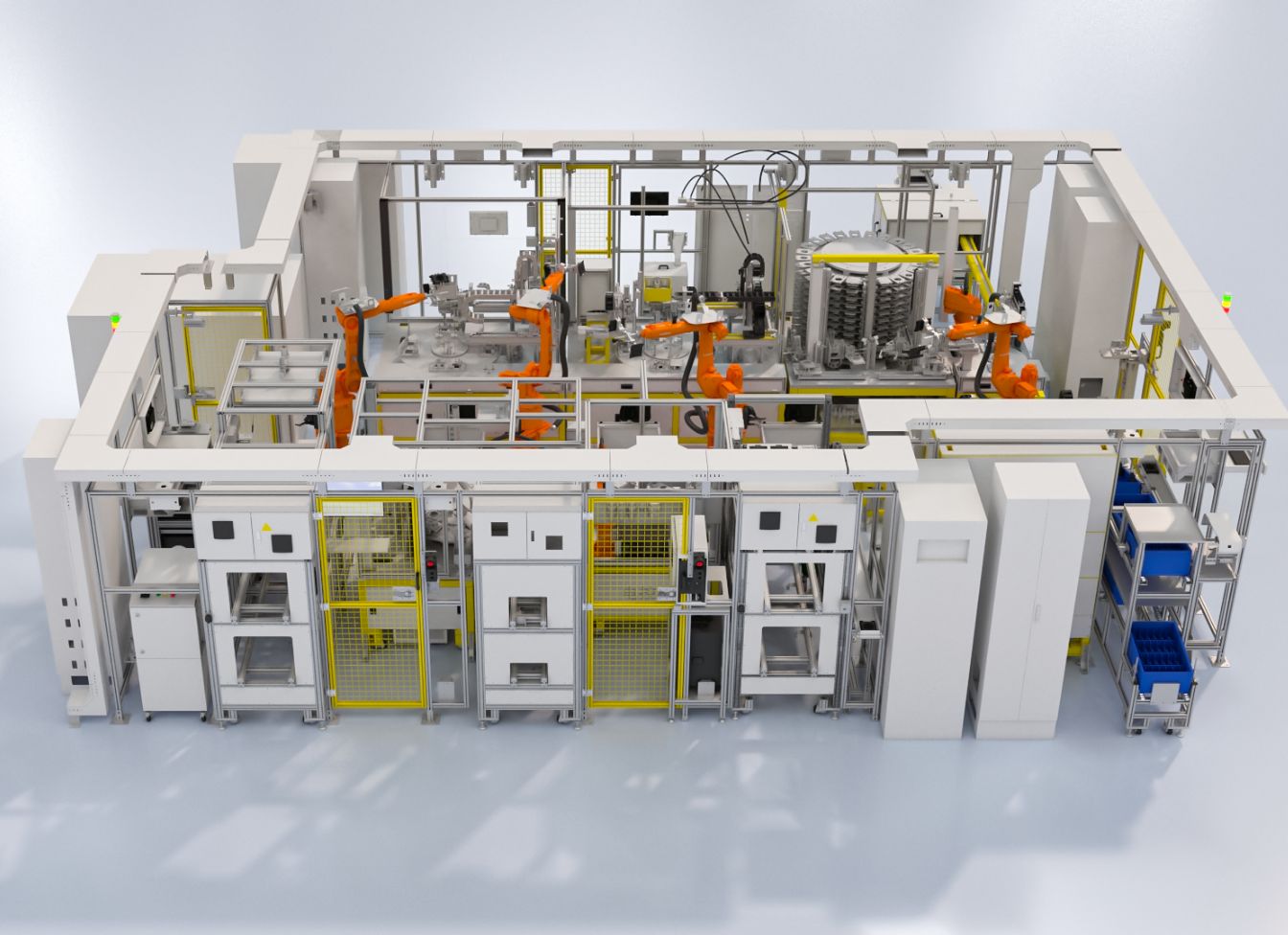

This equipment is an assembly line for brake control units, arranged in a circular workstation layout, with four six-axis robots in the middle responsible for product circulation between workstations. The process includes PCB loading, laser engraving, visual inspection, flip and shell assembly, typhoon cleaning, PCB assembly, plasma cleaning, gluing, screw installation, curing, sealing ring installation, EOL testing, airtightness testing, visual inspection of sealing rings, and finished product packaging. The entire assembly process of the body control module is fully automated. Multiple automatic abnormal material output processing ports ensure the continuous and smooth assembly process.
Product Highlights
- The equipment has been optimized and designed with a reasonable arrangement of workstations and product process flow and transmission methods, significantly improving efficiency.
- Each process mechanism is reliably designed to ensure stable equipment operation.
- The layout of manual operation workstations and operation ports is convenient, ensuring the continuity of equipment operation.
Basic Parameters
Equipment Capacity
16s/pcs
Product Yield
99.8%
Equipment Utilization rate
98%
Overall Size
8900mm×6900mm×2200mm
